사업소개
환경플랜트사업 - 대기

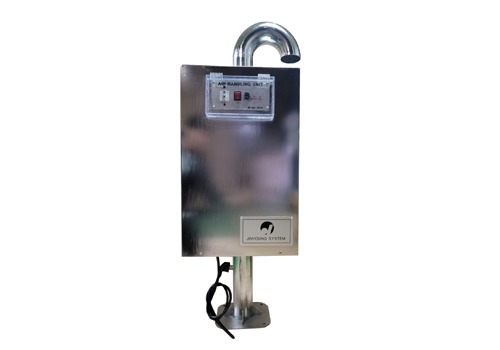

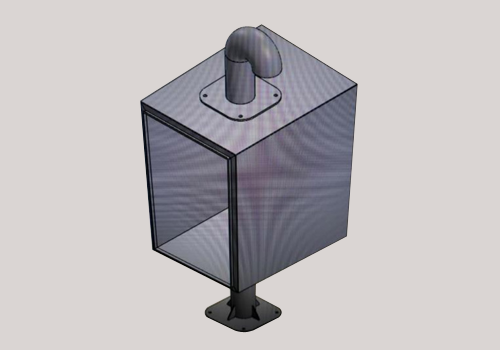

AIR STERILIZATION PURIFIER

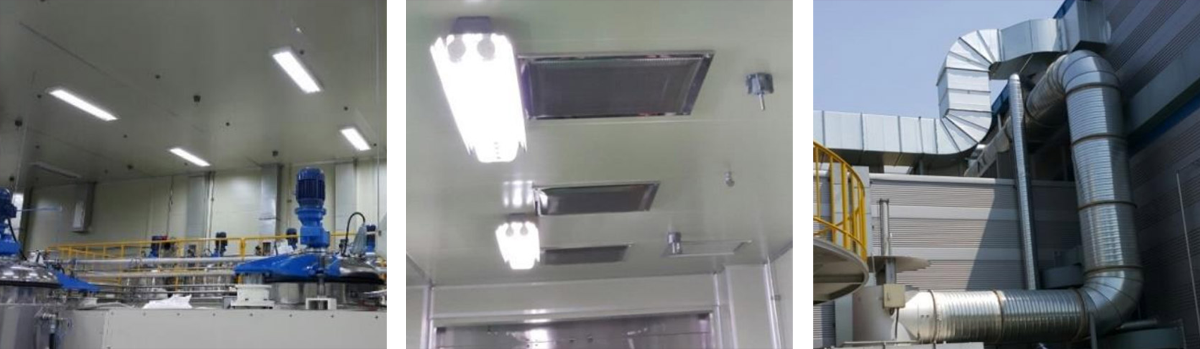

산업시설의 내부 집진기 배관에 추가 설치하여 외부로 배출되는 최종 공기의 각종 유해물질, 각종 유해한 냄새 등을 분해하여 깨끗한 공기만을 배출하므로써 환경보호 및 주변 도시(마을)의 거민주들에게도 피해가 가지 않도록 할 수 있는 차세대 장치입니다.
Specifications
| Model Name | JY50 | JY90 | JY150 |
|---|---|---|---|
| Coverage Area (Manufacturer Suggested) | 1,779 sq. ft. ( = 165 m2 ) | 3,202 sq. ft. ( = 298 m2 ) | 5,337 sq. ft. ( = 496 m2 ) |
| Best Fit |
- Sterilizing : Airborne Bacteria and Viruses - Removing Odors : Ammonia, Trimethylamine and Ethanol - Removal of Fine Dusts |
||
| Air Sterilization Technology | Multi Streamer Plasma + Plasma Ionizer Collector | ||
| Filtration System(8-Stage) |

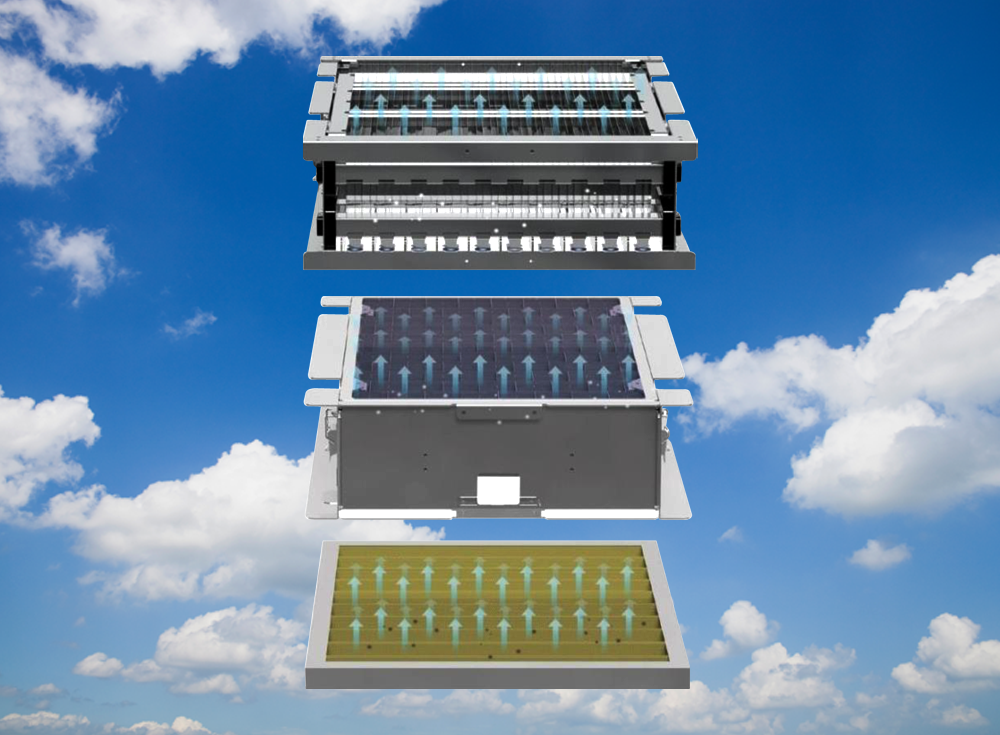

- Stage 1 : Demister (Pre-filter) - Stage 2 : Plasma Reactor using MSPT(Multi Streamer Plasma Technology) - Stage 3 : Plasma Ion Collector - Stage 4 : Alumina - Stage 5 : Ozone Decomposition Catalysts - Stage 6 : Activated Carbon - Stage 7 : UVC - Stage 8 : Cluster Ionizer |
||
| Amount of Air Moved (Max CFM) | 353 CFM | 706 CFM | 847 CFM |
| Ozone Emission | 0.05 ppm or less | 0.05 ppm or less | 0.05 ppm or less |
| Deodorization | Ammonia 97%, trimethylamine 94%, ethanol 95% | ||
| Air Changes per Hour | 5 | 5 | 5 |
| Filters to Replace |
* Alumina : Once per 2 years * Ozone decomposition catalysts : Once per 3 years * Activated : Once per 3 years |
||
| ndicator for Cleaning Filter | Yes | Yes | Yes |
| Cluster Ion Emission | More than 1 million / cc | ||
| Mode | 3 Modes(Low, Middle and High) | 3 Modes(Low, Middle and High) | 3 Modes(Low, Middle and High) |
| Noise Level | 45 dB | 45 dB | 45 dB |
| Power Consumption | 85 W | 90 W | 120 W |
| Dimension (W x H x D mm) | 450 x 1,000 x 550 | 450 x 1,250 x 550 | 450 x 1,500 x 550 |
| Weight | 65 kg ( = 143.3 lb ) | 77 kg ( = 169.7 lb ) | 82 kg ( = 180.7 lb ) |
| Exterior Material | Iron, stainless, aluminum, ABS, PC | ||
| Exterior Color | White or Dark Grey | ||
| Sterilizing Power | 99.9 %, airborne microbes(MRSA), and airborne virus(Bacteriophage MS2) all tested by Korea Conformity Laboratories |
||
